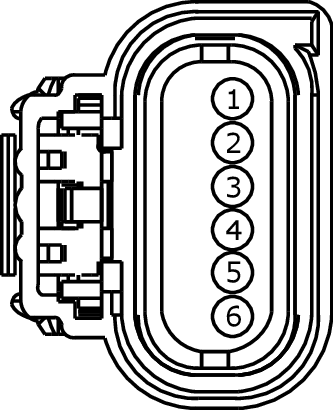

Connector End View C4370 - SIDE OBSTACLE DETECTION CONTROL MODULE - RIGHT (SOD-R)
Connector:C4370
Description
SIDE OBSTACLE DETECTION CONTROL MODULE - RIGHT (SOD-R)
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRB02 (BU-BN) | 20 | SENSOR - BLINDSPOT WARNING RIGHT HAND # WARNING ALERT | |
| 2 | CBP34 (VT-BN) | 20 | FUSE - 34 OR CIRCUIT BREAKER | |
| 3 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 4 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 5 | GD151 (BK-GN) | 20 | GROUND - PILLAR D RIGHT | |
| 6 | GD151 (BK-GN) | 20 | GROUND - PILLAR D RIGHT |
