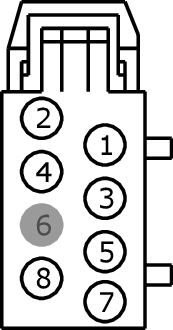

Connector End View C3322 - CLIMATE CONTROLLED SEAT BACKREST MODULE, DRIVER SIDE
Connector:C3322
Description
CLIMATE CONTROLLED SEAT BACKREST MODULE, DRIVER SIDE
Color
BK
Harness
14A699
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS01 (GY-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER | |
| 2 | CHS03 (GN-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN | |
| 3 | RHS01 (WH-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER | |
| 4 | RHS03 (GY-OG) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN | |
| 5 | VHS35 (VT-OG) | 22 | SENSOR - BACK TEMP. DRIVER | |
| 6 | * | * | Not Used | |
| 7 | VHS16 (BU-GN) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK BLOWER SPEED CONTROL | |
| 8 | RHS15 (GY-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR BACK TEMP. |

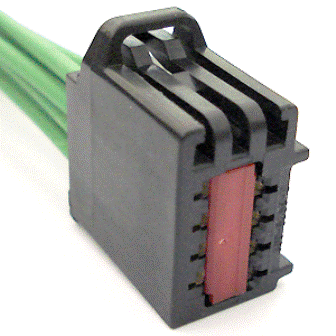

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-961 |
Service Part Number: 3U2Z-14S411-RHB Gauge: 14 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat |
