Power Steering Pump - 3.7L: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	Remover, Stretchy Belt 303-1419
Courtesy of FORD MOTOR COMPANY	Tool, Stretchy Belt Remover/Installer 303-1252/2

Material

Item	Specification
Motorcraft ® MERCON ® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON ® V

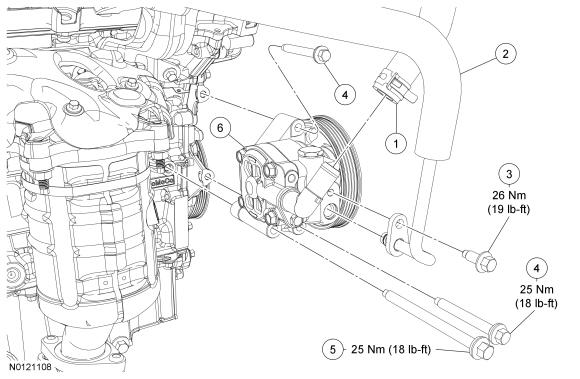

Fig 1: Power Steering Pump Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	3691	Supply hose
2	3A719	Pressure line
3	W710726	Pressure line clamp plate bolt
4	W503302	Power steering pump bolt (2 required)
5	W714207	Power steering pump bolt
6	3A696	Power steering pump
