Throttle Body: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

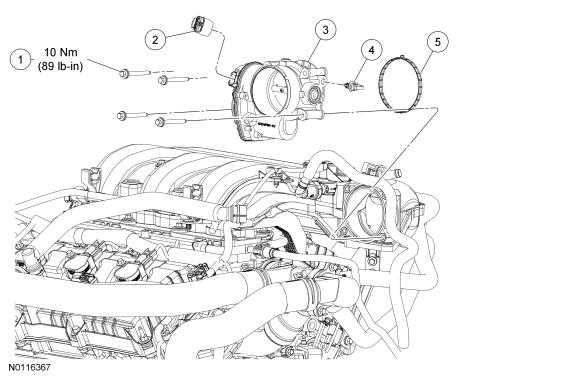

Fig 1: Throttle Body Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W713443	Throttle Body (TB) bolt (4 required)
2	14A464	Throttle body electrical connector (part of 12A581)
3	9E926	TB
4	-	Fuel vapor tube retainer (part of 9J280)
5	9E936	TB gasket
