Valve Cover - LH: Notes

WARNING: This page is about a different variant/trim than selected.

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	Handle 205-153 (T80T-4000-W)
Courtesy of FORD MOTOR COMPANY	Installer, VCT Spark Plug Tube Seal 303-1247/2
Courtesy of FORD MOTOR COMPANY	Remover, VCT Spark Plug Tube Seal 303-1247/1

Material

Item	Specification
Motorcraft ® High Performance Engine RTV Silicone TA-357	WSE-M4G323-A6
Motorcraft ® Metal Surface Prep ZC-31-B	-
Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada)	WSS-M2C946-A
Motorcraft ® Silicone Gasket Remover ZC-30-A	-

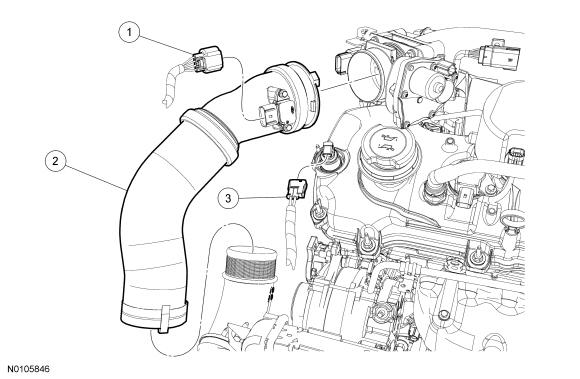

Valve Cover - LH (View 1 of 4)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Turbocharger Boost Pressure (TCBP) /Charge Air Cooler Temperature (CACT) Sensor electrical connector (part of 12C508)
2	6F073	Charge Air Cooler (CAC) outlet pipe
3	-	LH Variable Camshaft Timing (VCT) solenoid electrical connector (part of 12C508)

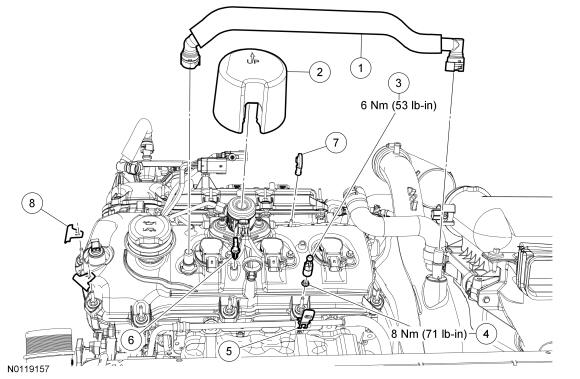

Valve Cover - LH (View 2 of 4)

Fig 1: LH Valve Cover Replacement Components With Torque Specifications (1 of 2)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6758	Crankcase vent tube
2	6N041	Fuel injection pump noise insulator shield
3	6N958	Engine cover mounting stud
4	W520100	Oil supply tube bracket nut
5	6N660	Oil supply tube bracket
6	14197	Wiring harness retainer (part of 12C508)
7	W700497	Wiring harness retainer (part of 12C508)
8	13A506	Wiring harness retainer (part of 12C508) (2 required)

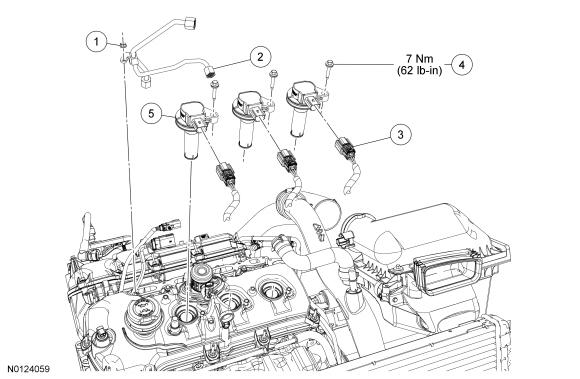

Valve Cover - LH (View 3 of 4)

Fig 2: LH Valve Cover Replacement Components With Torque Specifications (2 of 2)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W520100	Fuel injection pump tube nut (early build vehicles)
2	9J323	High-pressure fuel tube flare nut (early build vehicles) (3 required)
3	-	Ignition coil-on-plug electrical connector (part of 12C508) (3 required)
4	W708833	Ignition coil-on-plug bolt (3 required)
5	12A375	Ignition coil-on-plug (3 required)

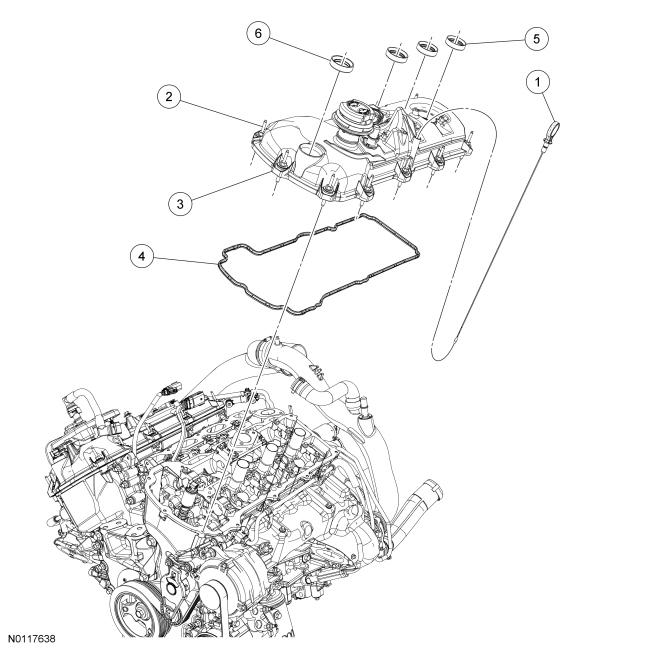

Valve Cover - LH (View 4 of 4)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6750	Oil level indicator
2	6C291	Valve cover retainer (11 required)
3	6A505	Valve cover
4	6A559	Valve cover gasket
5	6P251	Spark plug tube seal (3 required)
6	6C535	Variable Camshaft Timing (VCT) solenoid seal
