Removal And Installation
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:

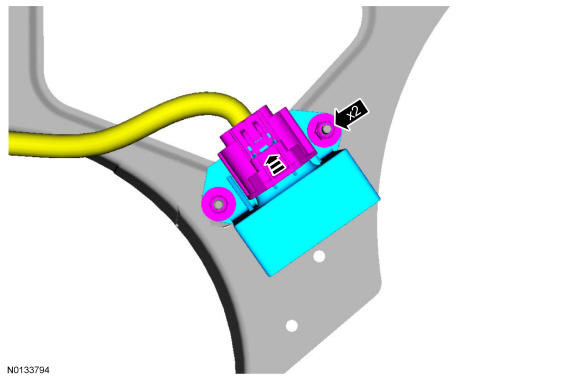

The fuel pump control module is located behind the rear seat backrest on the right side.
- 1.
Remove the rear seat backrest. Seating
- 2.NOTE: Do not overtighten the fasteners or damage to the module will occur.
Tighten to 5 Nm (44 lb-in).
