Front Engine Sensor Locations - 3.7L Ti-VCT

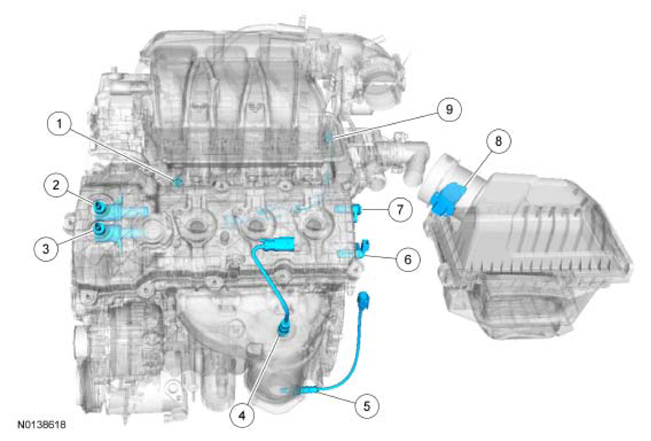

G09688172
Item Description Comments
1 CHT  sensor -
2 LH intake VCT  oil control solenoid -
3 LH exhaust VCT  oil control solenoid -
4 LH HO2S  -
5 LH CMS  -
6 LH exhaust CMP  sensor -
7 LH intake CMP  sensor -
8 MAP  sensor -
9 Rear KS  -
