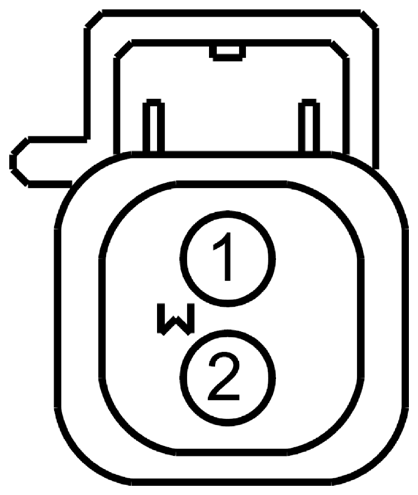

Side Air Bag Module, Driver Connector End View (C367)

Fig 1: Identifying Side Air Bag Module, Driver Connector (C367)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR105 (GN-BU)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE +
2	RR105 (GY-YE)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE -

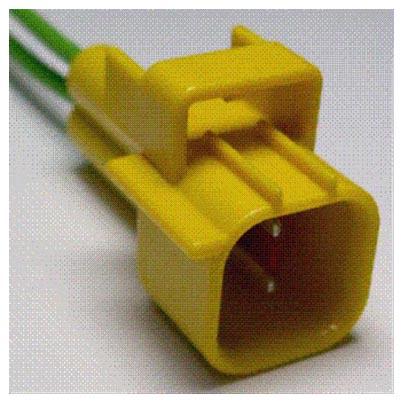

Available Pigtail Kits
Pigtail Kit Part Number WPT-1244	Service Part Number: AU2Z-14S411-BMA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Pretensioner - Seat Belt (Passenger)
