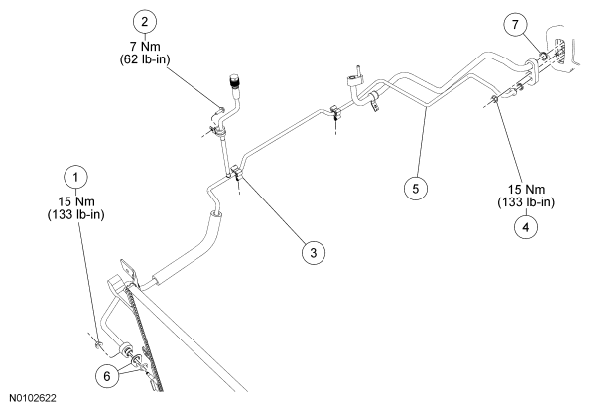

Condenser-to-Evaporator Line
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser outlet fitting nut |
| 2 | W707491 | High-pressure service gauge port valve extension bracket bolt |
| 3 | - | Condenser-to-evaporator line clip (2 required) (part of 19835) |
| 4 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 5 | 19835 | Condenser-to-evaporator line |
| 6 | 19B596 | O-ring seal and gasket seal kit |
| 7 | 19B596 | Gasket seal (2 pieces from kit required) |
