Neutral Position: Notes

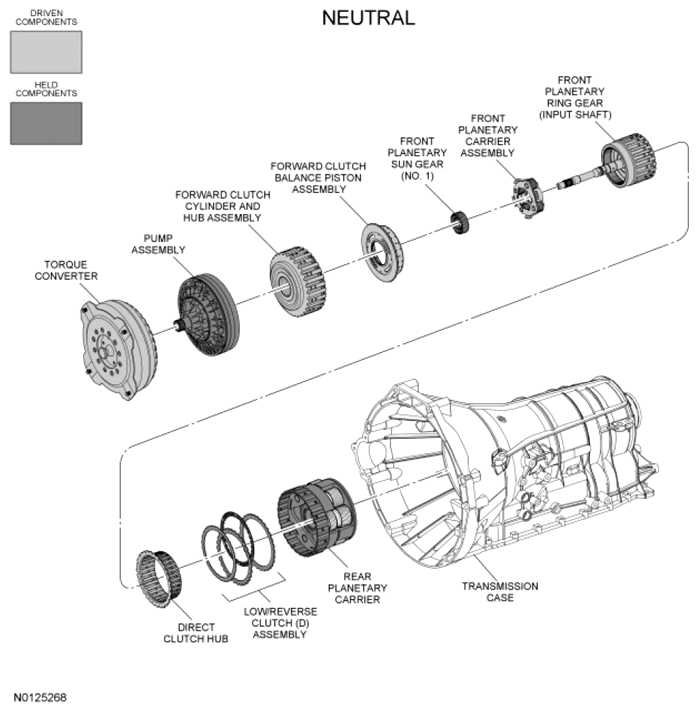

Fig 1: Exploded View Of Neutral Position

G07475860

Courtesy of FORD MOTOR CO.
