Axle Assembly: Notes

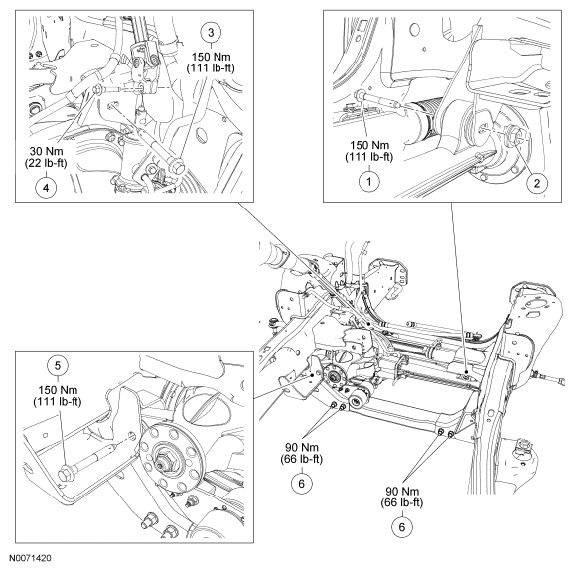

Fig 1: Axle Assembly Replacement Components With Torque Specifications
G06125399Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W712724 Axle tube bushing bolt
2 W712723 Axle tube bushing flagnut
3 W712724 Rear axle housing bushing bolt
4 N808684 Steering column coupler bolt
5 W712743 Front axle housing bushing support bolt
6 636893 Crossmember nuts (4 required)
