Main Control Valve Body: Installation

NOTE: Be careful not to pinch the TSS, OSS or TR sensor wiring harnesses under the valve body, or damage to the wiring harness or connectors may occur.

NOTE: If cleaning of the main control assembly or inspecting the valves, refer to MAIN CONTROL - OVERHAUL . If installing a new main control assembly continue with this procedure.

NOTE: Make sure that the manual control lever pin (part of the TR sensor) is correctly installed in the manual control valve.

Manual pin.

Manual valve.

Courtesy of FORD MOTOR CO.

Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR CO.

NOTE: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses when positioning the solenoid body in place.

Hand-tighten only.

42 mm (1.653 in) bolt
63 mm (2.48 in) bolts
80 mm (3.149 in) bolts

95 mm (3.74 in) bolts

Courtesy of FORD MOTOR CO.

Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR CO.

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.

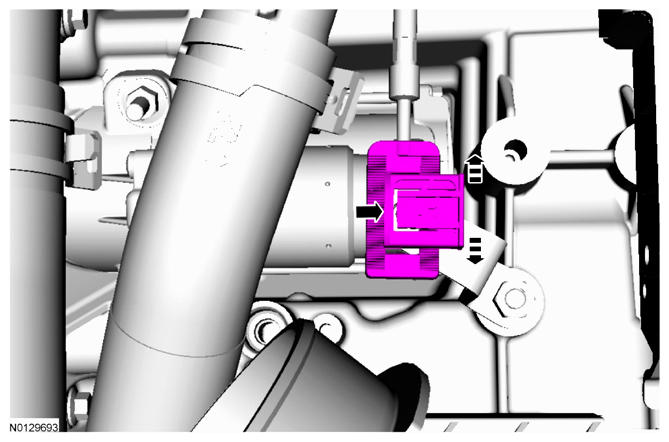

Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.

Courtesy of FORD MOTOR CO.
Install the main control cover. Refer to MAIN CONTROL COVER - 3.5L GTDI or MAIN CONTROL COVER - 3.7L TI-VCT .

Place the manual control lever in DRIVE.

Rotate the manual control lever clockwise until it stops.

Rotate the manual control lever counterclockwise one detent until it stops.

Courtesy of FORD MOTOR CO.

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
If a replacement transmission assembly is being installed or a new solenoid body is installed, the PCM will must be reflashed with a new solenoid body strategy and identification data file. Refer to SOLENOID BODY STRATEGY DOWNLOAD .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
