Seat - Front: Notes

NOTE: Passenger seat shown in illustration, driver seat similar.

NOTE: Non-limo or livery shown in illustration, limo or livery similar.

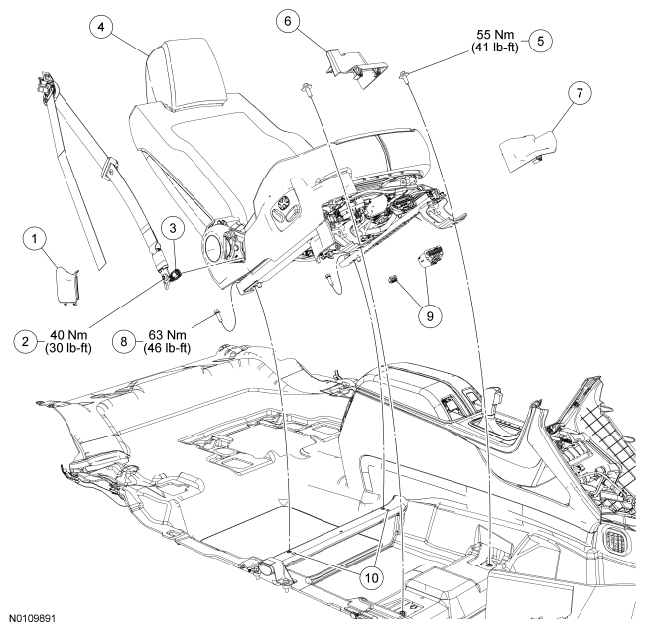

Fig 1: Front Passenger Seat Replacement Components With Torque Specifications - Non-Limo Or Livery

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61692 RH/61693 LH	Cushion side shield cover
2	-	Safety belt anchor bolt (part of 611B08 RH/611B09 LH)
3	-	Belt Tension Sensor (BTS) electrical connector (part of 611B08) (passenger seat only)
4	-	Passenger seat assembly
5	W709428	Front mounting bolts (2 required)
6	61748 RH/61749 LH	Outboard front cover
7	61748 RH/61749 LH	Inboard front cover
8	W714018	Rear mounting bolts (2 required)
9	-	Electrical connector (part of 14A005)
10	10672	Side Protection and Cabin Enhancement (SPACE®) tube locator pin holes
