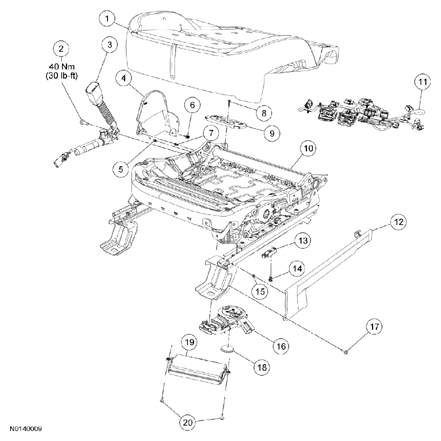

| 1 |
62901/632A23 |
Cushion cover/cushion foam pad |
| 2 |
W712978 |
Safety belt buckle and pretensioner bolt |
| 3 |
61203 |
Safety belt buckle and pretensioner |
| 4 |
62187 |
Recliner cover |
| 5 |
W705635 |
Pin-type retainer |
| 6 |
W710752 |
Scrivet |
| 7 |
- |
Barrel retainer (part of 62187) |
| 8 |
- |
Cushion Thermo-Electric Device (TED) adapter plate screw (part of 19N550) (If equipped) |
| 9 |
- |
Cushion TED adapter plate (part of 19N550) (if equipped) |
| 10 |
61711 |
Seat track |
| 11 |
14D231 |
Cushion wire harness |
| 12 |
61749 |
Seat track cover |
| 13 |
14B416 |
Seat position sensor |
| 14 |
- |
Seat position sensor clip (part of 14B416) |
| 15 |
W714217 |
Barrel retainer |
| 16 |
19N550 |
Cushion TED |
| 17 |
W505153 |
Screw |
| 18 |
19E880 |
Cushion TED filter |
| 19 |
14C708 |
Driver Seat Module (DSM) |
| 20 |
W505153 |
Screw |
