Removal and Installation

NOTE: Module configuration is required when a new Audio Front Control Module (ACM) is being installed.

Upload the ACM configuration information to the scan tool by following the scan tool on screen instructions.
Remove the Front Controls Interface Module (FCIM). Refer to FRONT CONTROLS INTERFACE MODULE (FCIM) .

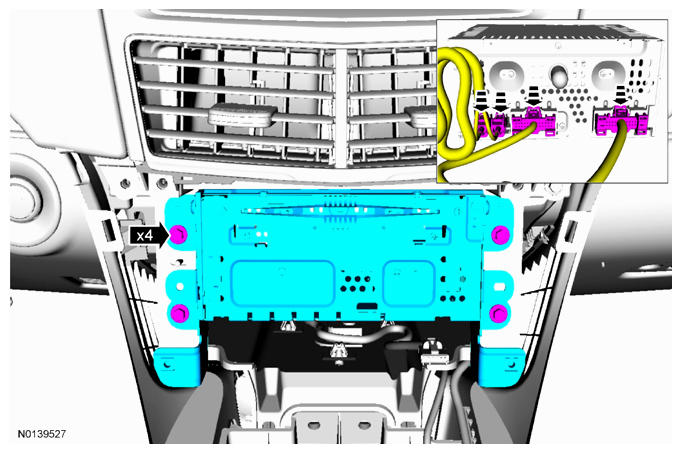

Remove the 4 ACM bolts and the ACM.
- Disconnect the electrical connectors.
- To install, tighten to 3 Nm (27 lb-in).
To install, reverse the removal procedure.
- Download the ACM configuration information from the scan tool to the new ACM following the scan tool on screen instructions.
