Generator Current Sensor: Notes
NOTE:

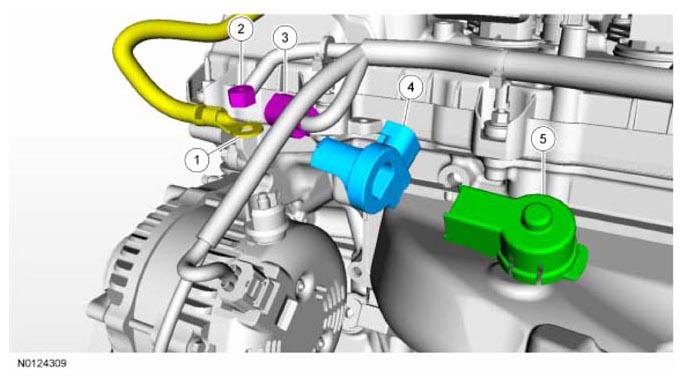

3.5LGTDI shown in illustration, other engines similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Generator B+ terminal (part of 14B060) |
| 2 | 14B357 | Generator B+ terminal nut - 17 Nm (150 lb-in) |
| 3 | - | Generator current sensor electrical connector (part of 14B060) |
| 4 | - | Generator current sensor |
| 5 | - | Generator B+ terminal cover (part of 14B060) |
