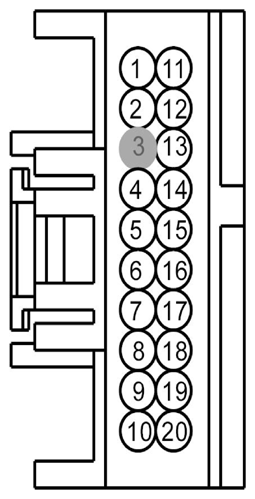

Driver Seat Module (DSM) Connector End View (C341D)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LPM30 (GY-VT) | 20 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + | |
| 2 | CPM26 (WH) | 18 | CTRL MOD. - LEFT MIRROR DOWN | |
| 3 | * | * | Not Used | |
| 4 | CPM29 (GN) | 18 | CTRL MOD. - LEFT MIRROR UP | |
| 5 | CPM28 (BU-BN) | 18 | CTRL MOD. - LEFT MIRROR RIGHT | |
| 6 | CPM33 (WH-VT) | 18 | CTRL MOD. - RIGHT MIRROR RIGHT | |
| 7 | CPM34 (WH-BN) | 18 | CTRL MOD. - RIGHT MIRROR UP | |
| 8 | CPM31 (YE-GY) | 18 | CTRL MOD. - RIGHT MIRROR DOWN | |
| 9 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 10 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 11 | RPM30 (YE) | 20 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) - | |
| 12 | VPM36 (BN-YE) | 20 | SENSOR - LEFT MIRROR POSITION # VERTICAL | |
| 13 | VPM35 (YE-BU) | 20 | SENSOR - LEFT MIRROR POSITION # HORIZONTAL | |
| 14 | VPM38 (BN-GN) | 20 | SENSOR - RIGHT MIRROR POSITION # VERTICAL | |
| 15 | VPM37 (BU-OG) | 20 | SENSOR - RIGHT MIRROR POSITION # HORIZONTAL | |
| 16 | RPM11 (YE-OG) | 20 | CTRL MOD. - SWITCH MIRROR RETURN | |
| 17 | CPM21 (YE-VT) | 20 | SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS) | |
| 18 | CPM20 (BN-WH) | 20 | SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS) | |
| 19 | CPM17 (BU-GN) | 20 | SWITCH - POWER MIRROR # LEFT MIRROR UPWARD (IF PLUS) | |
| 20 | CPM16 (BN-BU) | 20 | SWITCH - POWER MIRROR # LEFT MIRROR RIGHTWARD (IF PLUS) |
| Available Pigtail Kits | |

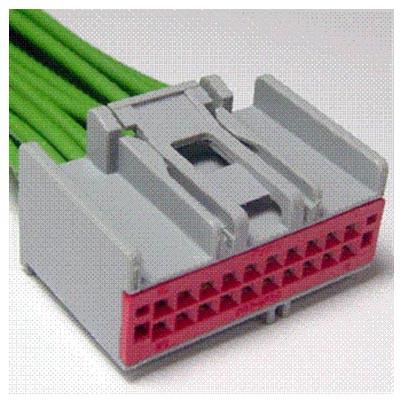

| Pigtail Kit Part Number WPT-1199 | Service Part Number: 3U2Z-14S411-FCB Gauge: 18 Pin material: Silver Cavities: 20 Vehicle Uses
|

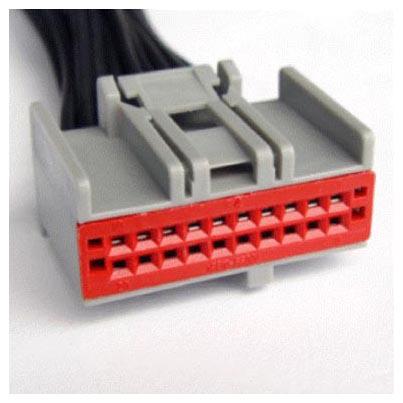

| Pigtail Kit Part Number WPT-255 | Service Part Number: 3U2Z-14S411-FCA Gauge: 18 Pin material: Tin Cavities: 20 Vehicle Uses
|
