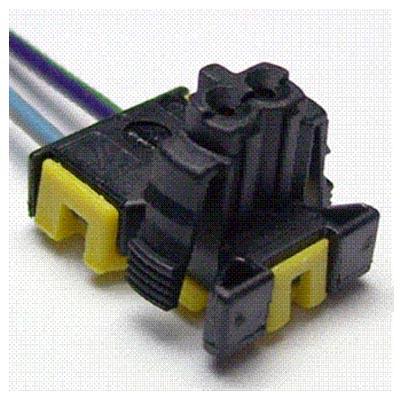

Driver Air Bag Module Connector End View (C216B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR102 (YE-GN) | 20 | CTRL MOD. - AIR BAG DRIVER 2 FEED | |
| 2 | RR102 (VT-BN) | 20 | CTRL MOD. - AIR BAG DRIVER 2 RTN |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1230 | Service Part Number: BU2Z-14S411-BPA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
