Mass Air Flow (MAF) Sensor: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

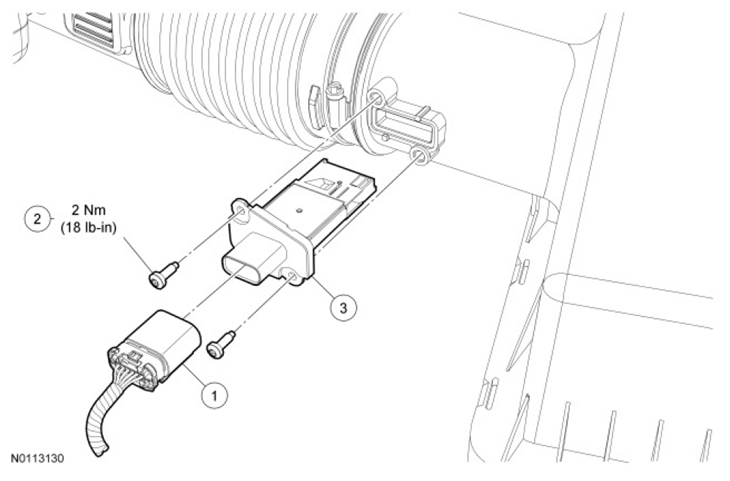

Fig 1: Exploded View Of Mass Air Flow Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Mass Air Flow (MAF) sensor electrical connector (part of 12C581)
2	W505562	MAF sensor bolt (2 required)
3	12B579	MAF sensor
