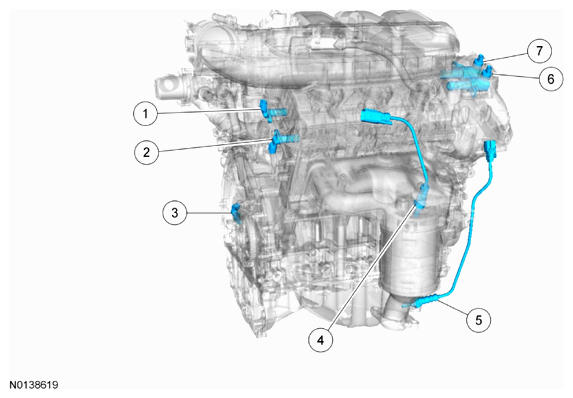

Rear Engine Sensor Locations - 3.7L Ti-VCT

G08660157
Item Description Comments
1 RH intake CMP sensor -
2 RH exhaust CMP sensor -
3 CKP sensor -
4 RH HO2S -
5 RH CMS -
6 RH exhaust VCT oil control solenoid -
7 RH intake VCT oil control solenoid -
