Selector Lever - MKZ: Notes

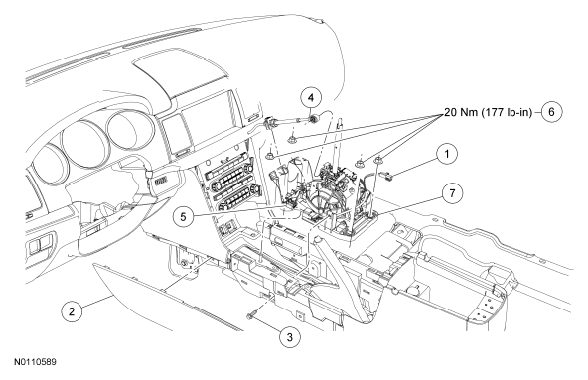

Fig 1: Exploded View Of Selector Lever (MKZ) With Torque Specifications
G06275682Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A459 Selector lever bezel electrical connector
2 1181081 Floor console lower trim panel
3 W709955 Floor console screw
4 7E395 Selector lever cable
5 14489 Selector lever electrical connector
6 W714098 Selector lever nuts
7 7210 Selector lever
