Manifold Absolute Pressure (MAP) Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

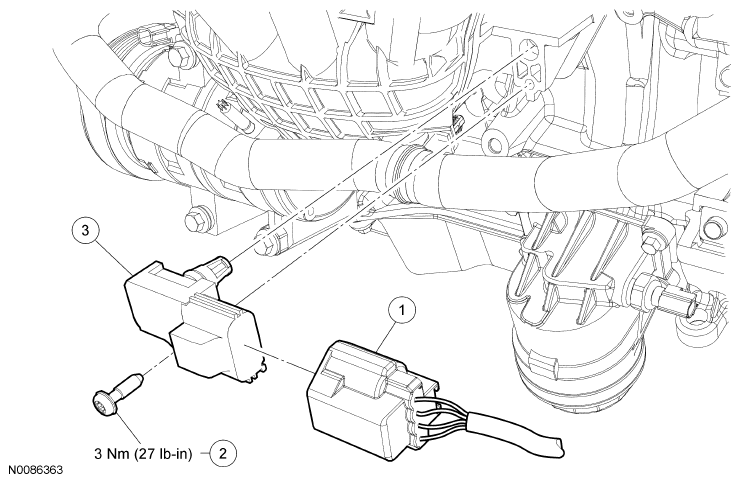

Fig 1: Manifold Absolute Pressure (MAP) Sensor & Electrical Connector With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Manifold Absolute Pressure (MAP) sensor electrical connector
2	W701459	MAP sensor screw
3	9F479	MAP sensor
