Knock Sensor (KS): Notes

WARNING: This page is about a different variant/trim than selected.

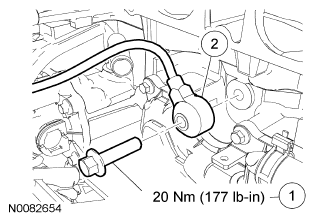

Fig 1: Lnock Sensor And Bolt With Torque Specification
G06096805Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W5000025 Knock Sensor (KS) bolt
2 12A699 KS
