Differential Seals - LH: Installation

WARNING: This page is about a different variant/trim than selected.

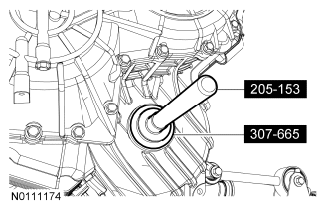

Using the Differential Seal RH and LH Installer (two sided tool eCVT) and Handle, install the LH differential seal.

Fig 1: Installing LH Differential Seal
Courtesy of FORD MOTOR CO.
Install the LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .

NOTE: Inspect the plug and washer for damage and install a new plug if necessary.

Clean the drain plug threads and install the drain plug.
- Tighten to 40 Nm (30 lb-ft).

  Fig 2: View Of Transaxle Drain Plug Location
  Courtesy of FORD MOTOR CO.
Remove the fill plug on the side of the transaxle.

Fig 3: Locating Fill Plug On Transaxle
Courtesy of FORD MOTOR CO.
Fill the transaxle with clean transmission fluid as specified until the level reaches the bottom of the fill plug hole.

NOTE: Clean the area around the fill plug removing transmission fluid that may have spilled on the transaxle case.

NOTE: Inspect the plug and washer for damage and install a new plug if necessary.

Install the fill plug.
- Tighten to 40 Nm (30 lb-ft).

  Fig 4: Locating Fill Plug On Transaxle
  Courtesy of FORD MOTOR CO.

NOTE: The check and fill plug is located on the left side of the transaxle near the front.

NOTE: The transmission fluid is checked and filled by removing the fill plug and adding transmission fluid to the bottom of the fill plug hole.

Start the engine and check for correct forward and reverse operation.
Install the underbody cover and 7 screws.

Fig 5: View Of Underbody Cover Fasteners
Courtesy of FORD MOTOR CO.
