Knock Sensor (KS) - 3.5L GTDI: Notes

NOTE: LH cylinder head removed from art for clarity.

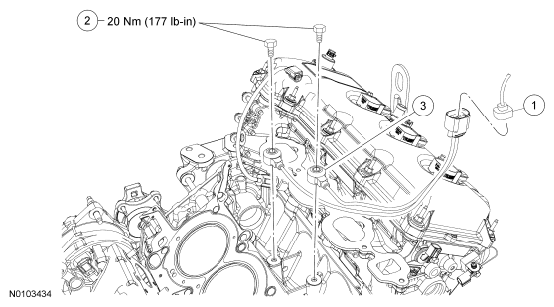

Fig 1: Lnock Sensor (KS) Replacement Components - 3.5L GTDI With Torque Specifications
G06253946Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Knock Sensor (KS) electrical connector
2 W704749 KS bolts
3 12A699 KS
