Backup Transceiver: Notes

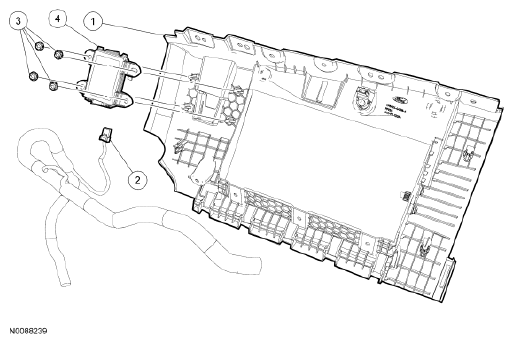

Fig 1: Identifying Backup Transceiver Related Components
G06076013Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5404338 RH lower instrument panel finish panel
2 - Backup transceiver electrical connector (part of 14401)
3 W706675 Backup transceiver nuts (4 required)
4 15607 Backup transceiver
