Subwoofer Amplifier: Notes

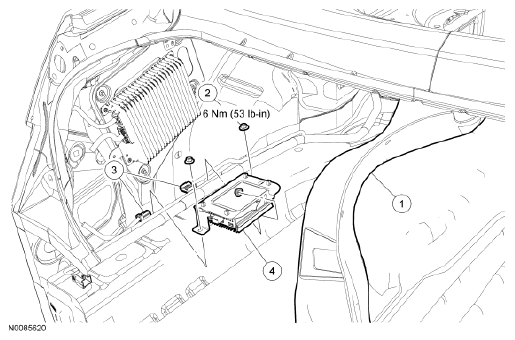

Fig 1: Exploded View Of Subwoofer Amplifier With Torque Specifications
G06075599Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5445423 LH luggage compartment trim panel
2 N621906-S Subwoofer amplifier nuts (3 required)
3 - Subwoofer amplifier electrical connectors (part of 14A005)
4 18B849 Subwoofer amplifier
