Power Liftgate Switch / Traction Control Switch / Hazard Switch Connector - C2361

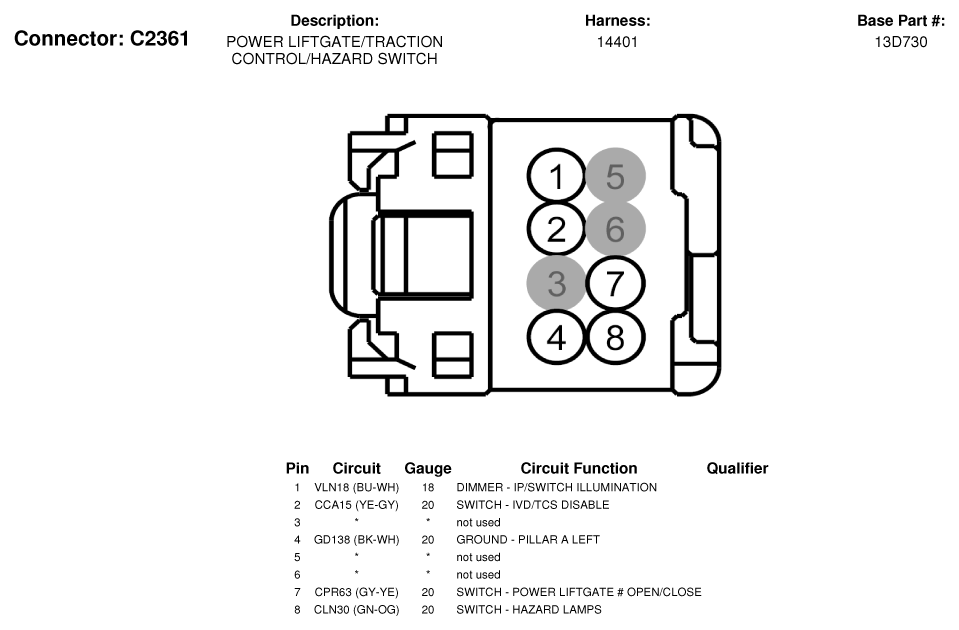

Fig 1: Power Liftgate Switch / Traction Control Switch / Hazard Switch Connector End View (C2361)
G07327688Courtesy of FORD MOTOR CO.
