DC/DC Converter Module Connector End View - C1457D

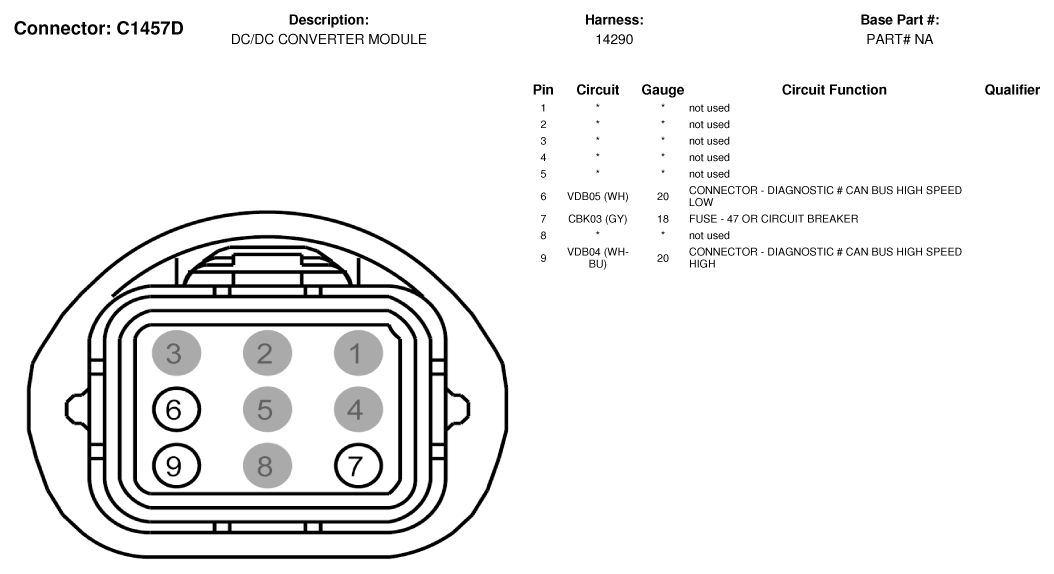

Fig 1: DC/DC Converter Module Connector End View (C1457D)

G07329536

Courtesy of FORD MOTOR CO.
