Battery Energy Control Module Connector End View - C4237B

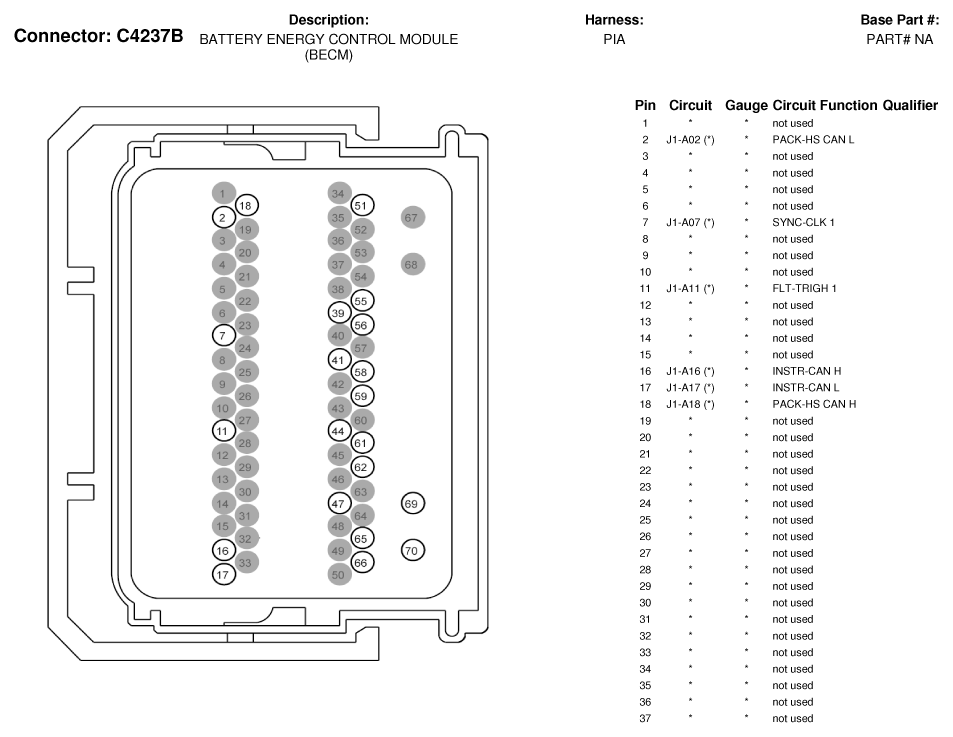

Fig 1: Battery Energy Control Module Connector End View (C4237B) (1 Of 2)
G07329697Courtesy of FORD MOTOR CO.

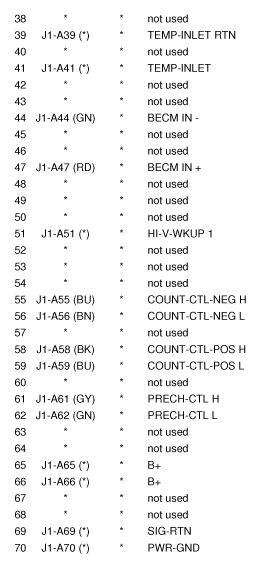

Fig 2: Battery Energy Control Module Connector End View (C4237B) (2 Of 2)
G07329698Courtesy of FORD MOTOR CO.
