Battery Energy Control Module Connector End View - C4237A

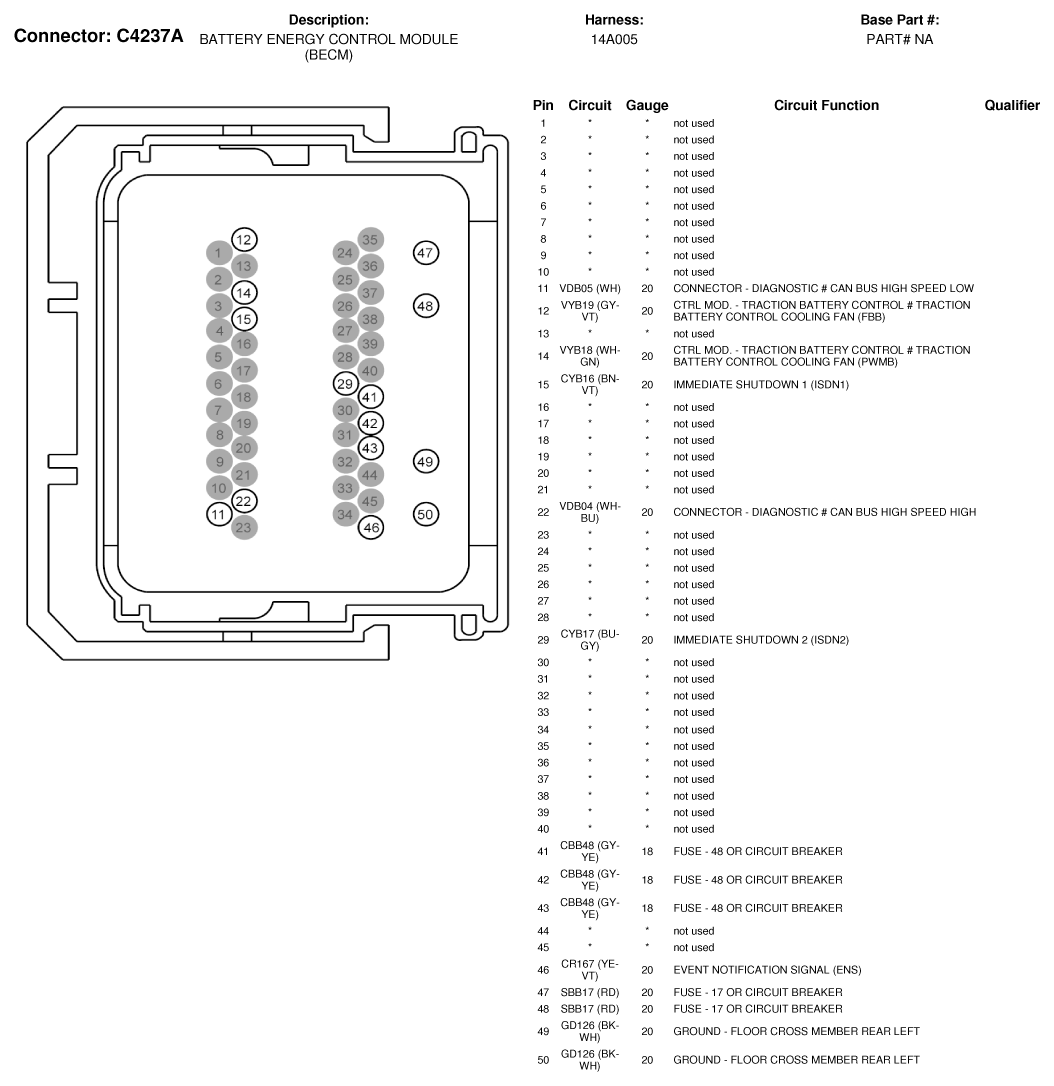

Fig 1: Battery Energy Control Module Connector End View (C4237A)

G07329696

Courtesy of FORD MOTOR CO.
