Audio Digital Signal Processing Module Connector End View - C4235A

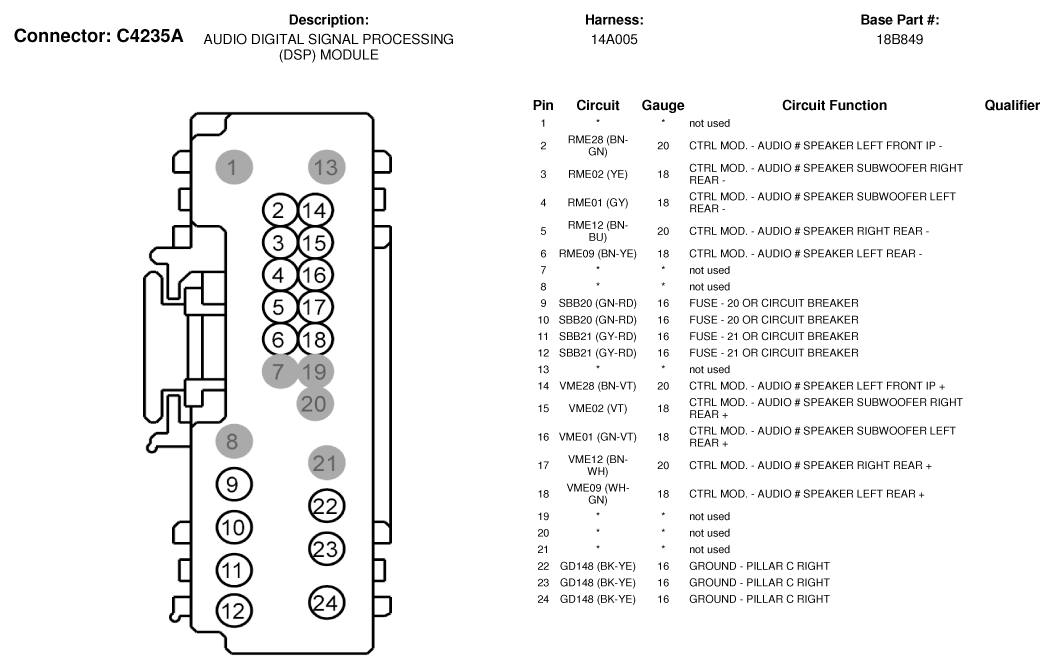

Fig 1: Audio Digital Signal Processing Module Connector End View (C4235A)

G07329688

Courtesy of FORD MOTOR CO.
