DC/DC Converter Module Connector End View - C1457A

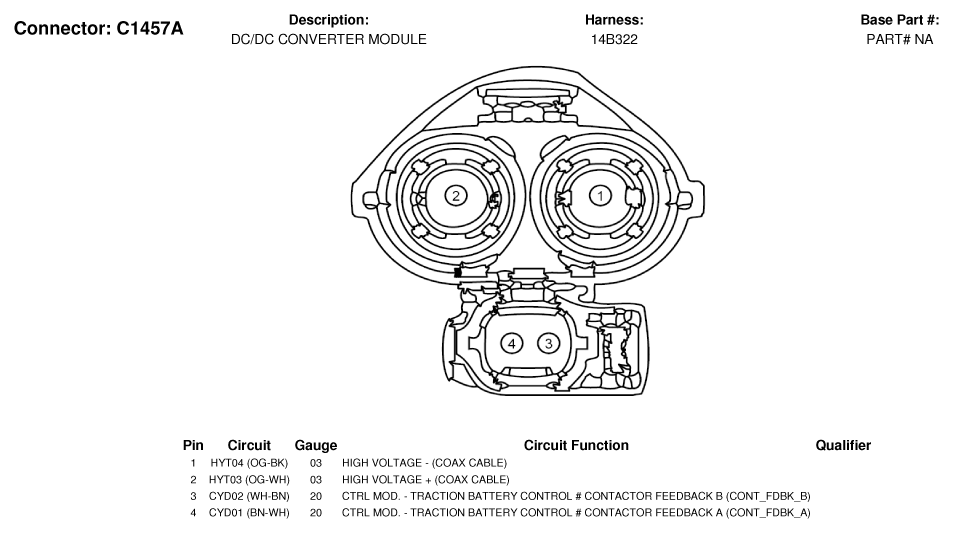

Fig 1: DC/DC Converter Module Connector End View (C1457A)

G07329533

Courtesy of FORD MOTOR CO.
