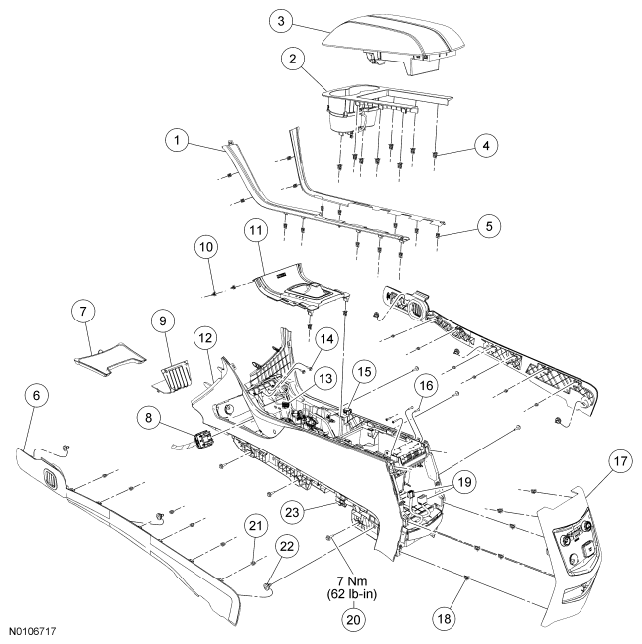

Console - Short, Floor: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 061A17 LH/061A16 RH | Floor console finish moulding |
| 2 | 04567 | Front cup holder |
| 3 | 06024 | Front armrest |
| 4 | W710338 | Front cup holder retaining clip (8 required) |
| 5 | W713631 | Floor console finish moulding retaining clip (14 required) |
| 6 | 04608 LH/04609 RH | Floor console front side trim panel |
| 7 | 044E84 | Front storage compartment mat |
| 8 | 19C757 | Front section front in-line electrical connector |
| 9 | 044E84 | Front storage compartment access panel |
| 10 | W710338 | Selector lever trim panel retaining clip (4 required) |
| 11 | 045A76 | Selector lever trim panel |
| 12 | 045A36 | Floor console front section |
| 13 | 19C757 | Selector lever trim panel electrical connector |
| 14 | W506943 | Floor console-to-instrument panel screw (2 required) |
| 15 | 19C757 | Front cup holder electrical connector |
| 16 | 06024 | Front armrest screw (4 required) |
| 17 | 045E24 | Floor console rear control panel |
| 18 | W710338 | Floor console rear control panel retaining clip (6 required) |
| 19 | 19C757 | Floor console rear control panel electrical connectors |
| 20 | W505424 | Floor console bolt (6 required) |
| 21 | W790178 | Floor console front side trim panel retaining clip (12 required) |
| 22 | W713267 | Floor console front side trim panel pushpin (6 required) |
| 23 | 19C757 | Front section LH in-line electrical connector |
