Rear Lamp Assembly - Liftgate: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

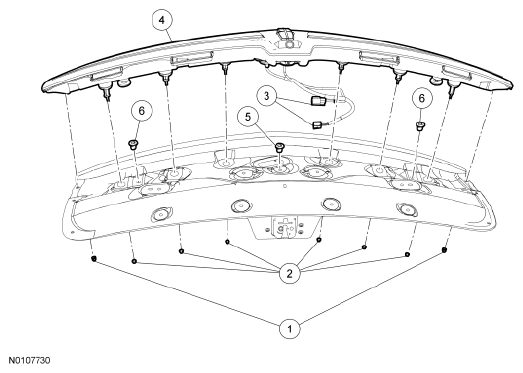

| Item | Part Number | Description |
|---|---|---|
| 1 | N805296 | Liftgate lamp assembly nuts (2 required) |
| 2 | W704141 | Liftgate lamp assembly nuts (6 required) |
| 3 | - | Liftgate lamp electrical connectors (part of 13A565) |
| 4 | 13A565 | Liftgate lamp |
| 5 | 13A457 | Liftgate lamp center grommet (pin locator) |
| 6 | 13A457 | Liftgate lamp outboard grommet (pin locator) (2 required) |
