Special Tool(s)

SPECIAL TOOL(S)

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

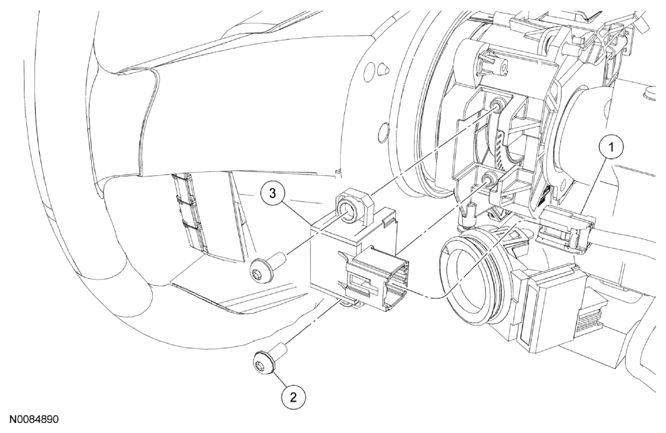

Fig 1: Identifying Steering Wheel Rotation Sensor Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Steering wheel rotation sensor electrical connector (3.5L Fusion/Milan part of 2C011, MKZ part of 14401)
2	W506942	Steering wheel rotation sensor bolt (2 required)
3	3F818	Steering wheel rotation sensor
