Left Front Tweeter Connector End View - C2421

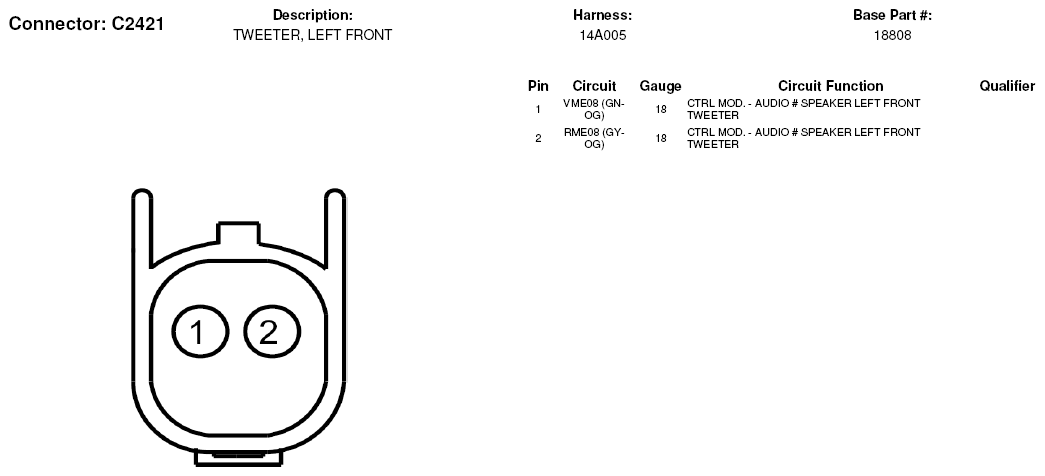

Fig 1: Left Front Tweeter Connector End View (C2421)

G07327218

Courtesy of FORD MOTOR CO.
