Reverse Position: Notes

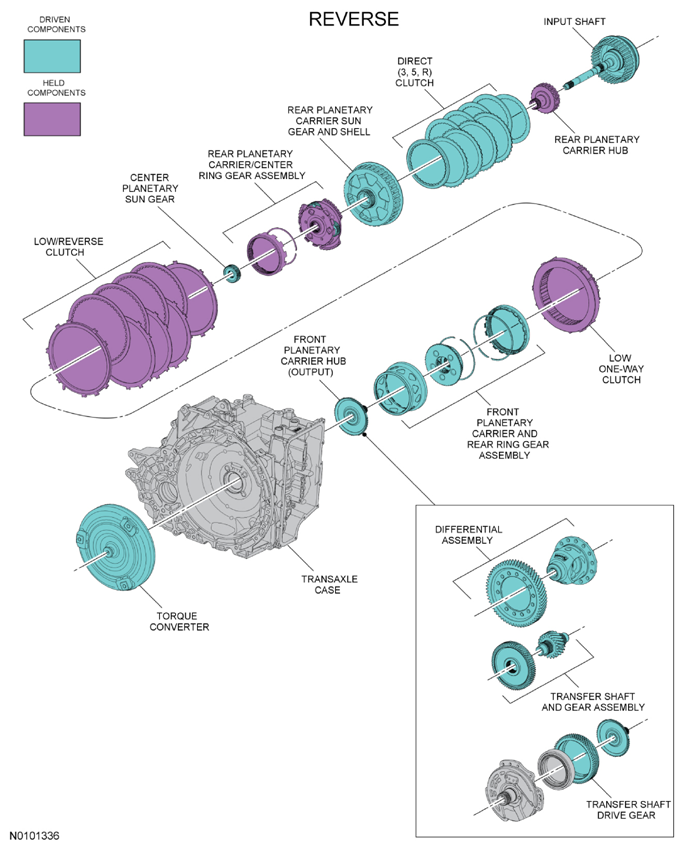

Fig 1: Identifying Reverse Position Components

G07792841

Courtesy of FORD MOTOR CO.
