Start Switch Connector - C2195

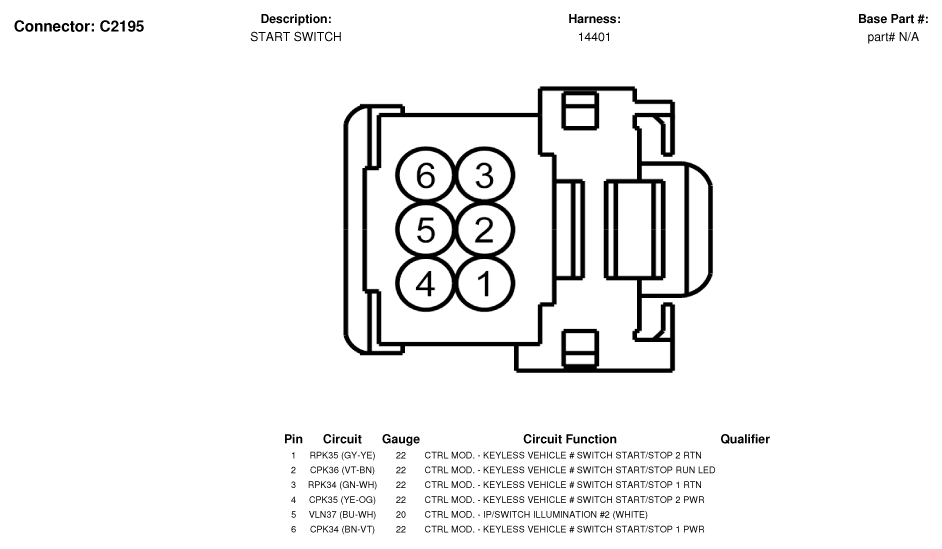

Fig 1: Start Switch Connector End View (C2195)

G07330022

Courtesy of FORD MOTOR CO.
