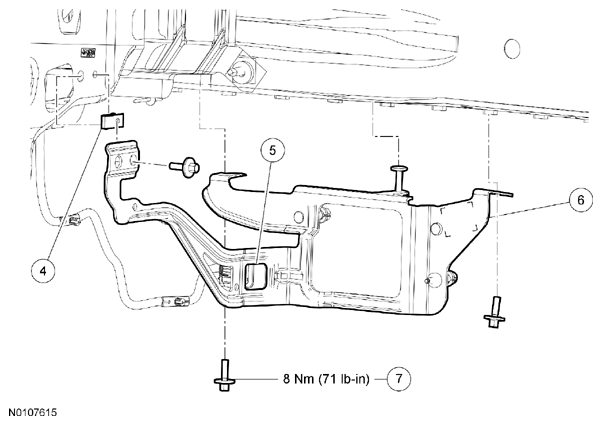

C-CM Bracket
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 4 |
W520812 |
C-CM bracket U-nut |
| 5 |
- |
C-CM electrical connector (part of 14290) |
| 6 |
14C022 |
C-CM bracket |
| 7 |
W710879 |
C-CM bracket bolts (3 required) |
