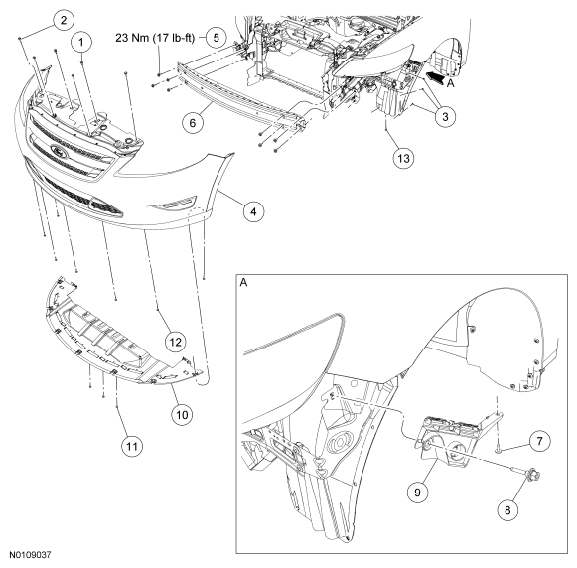

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705436 | Front bumper cover pin-type retainer (2 required) |
| 2 | W711685 | Front bumper cover bolt (4 required) |
| 3 | W706805 | Fender splash shield screws (6 required) |
| 4 | 17D957 | Front bumper cover |
| 5 | W707050 | Front bumper bolt (8 required) |
| 6 | 17750 | Front bumper |
| 7 | W705436 | Front bumper cover-to-front bumper cover mounting bracket scrivets |
| 8 | W714628 | Front bumper cover mounting bracket bolt |
| 9 | 17D958-A RH/17D959-A LH | Front bumper cover mounting bracket |
| 10 | 8B407 | Lower air deflector |
| 11 | W706092 | Rear lower air deflector pin-type retainer (3 required) |
| 12 | W505416 | Lower air deflector bolt (7 required) |
| 13 | - | Fender splash shield-to-lower air deflector bolt (2 required) |
- For additional information, refer to the appropriate procedures in this Service Information.
