High Mounted Stoplamp: Notes

WARNING: This page is about a different car, the 2011 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

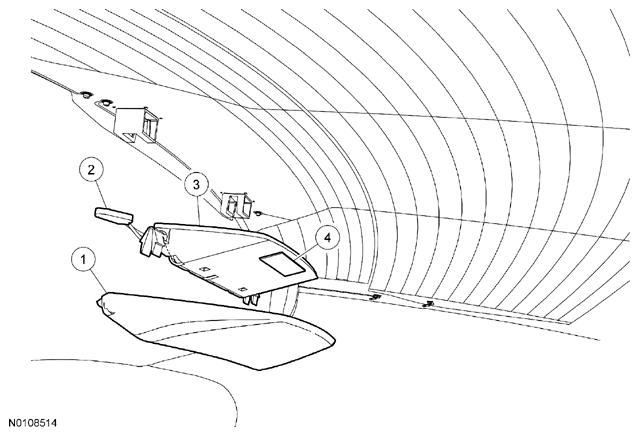

Fig 1: High Mounted Stoplamp, Cover And Electrical Connector
G07811414Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13A656 High mounted stoplamp cover
2 - High mounted stoplamp electrical connector (part of 13A613)
3 13A613 High mounted stoplamp
4 - Hook-and-loop strip
