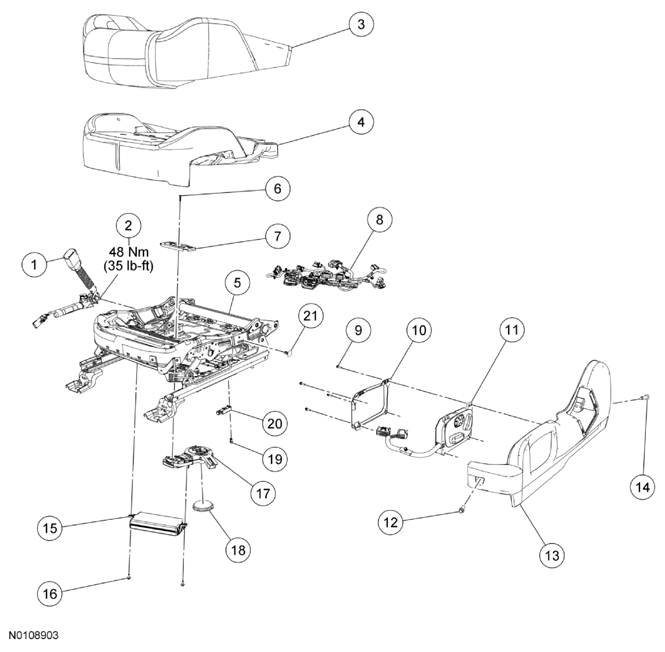

Driver Seat Track
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 61203 | Safety belt buckle and pretensioner |
| 2 | W712978 | Safety belt buckle and pretensioner bolt (part of 61203) |
| 3 | 62901 | Cushion trim cover |
| 4 | 632A23 | Cushion foam pad |
| 5 | 61711 | Seat track |
| 6 | - | Cushion Thermo-Electric Device (TED) adapter plate screw (part of 19N550) |
| 7 | - | Cushion TED adapter plate (part of 19N550) |
| 8 | 14D231 | Cushion wire harness |
| 9 | W506824 | Screw (4 required) |
| 10 | 62257 | Seat control switch cover |
| 11 | 14A701 | Seat control switch |
| 12 | W505153 | Screw |
| 13 | 62187 | Cushion side shield |
| 14 | W710752 | Scrivet |
| 15 | 14C708 | Driver Seat Module (DSM) |
| 16 | S505153 | Screw (2 required) |
| 17 | 19N550 | Cushion TED |
| 18 | 19E880 | Cushion TED filter |
| 19 | - | Seat position sensor clip (part of 14B416) |
| 20 | 14B416 | Seat position sensor |
| 21 | - | Pin-type retainer |
