C-CM Bracket

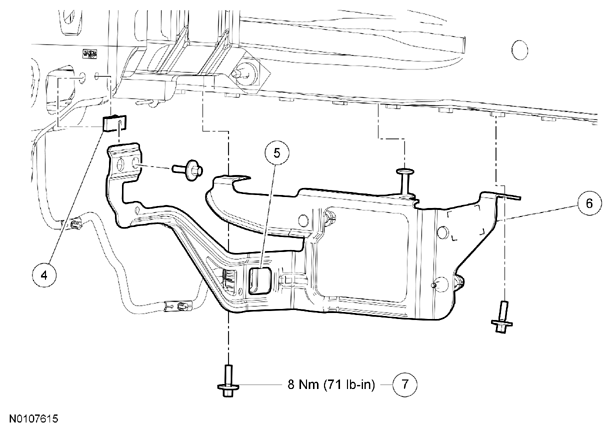

Fig 1: C-CM Bracket Replacement Components With Torque Specifications
G07819300Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
4 W520812 Cruise-Control Module (C-CM) bracket U-nut
5 - C-CM electrical connector (part of 14290)
6 9C736 C-CM bracket
7 W710879 C-CM bracket bolts (3 required)
