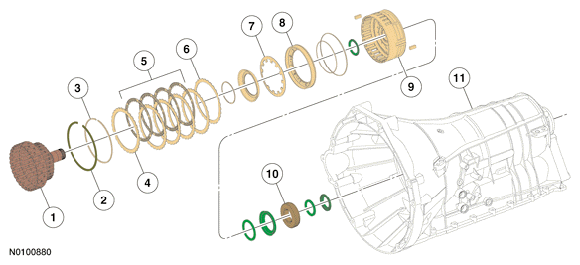

Intermediate Clutch (C) Exploded View
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 7F360 | Direct clutch (B) cylinder |
| 2 | 7D483 | Center support retaining ring |
| 3 | 7D483 | Intermediate clutch (C) pressure plate retaining ring |
| 4 | 7B066 | Intermediate clutch pressure plate |
| 5 | 7B164 | Intermediate clutch assembly (quantity model dependant) |
| 6 | 7E085 | Intermediate clutch plate spring |
| 7 | 7A480 | Intermediate clutch piston return spring |
| 8 | 7E005 | Intermediate clutch piston |
| 9 | 7A130 | Center support assembly |
| 10 | 7D063 | Rear planetary sun gear No. 2 |
| 11 | 7005 | Transmission case assembly |
