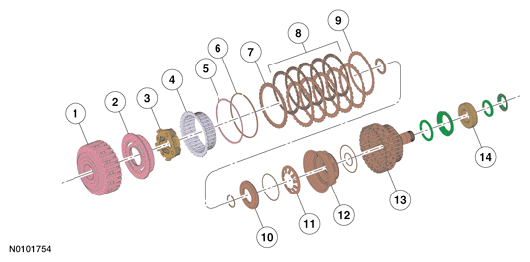

Direct Clutch (B) Exploded View
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A360 | Forward clutch (A) cylinder |
| 2 | 7H360 | Forward clutch balance piston |
| 3 | 7A398 | Front planetary carrier assembly |
| 4 | 7F236 | Direct clutch (B) hub |
| 5 | 7C122 | Direct clutch cylinder retaining ring |
| 6 | 7D483 | Direct clutch pressure plate retaining ring |
| 7 | 7B066 | Direct clutch pressure plate |
| 8 | - | Direct clutch assembly (quantity model dependant) |
| 9 | 7E085 | Direct clutch cushion plate |
| 10 | 7H359 | Direct clutch balance piston |
| 11 | 7B488 | Direct clutch piston return spring |
| 12 | 7A262 | Direct clutch piston |
| 13 | 7F360 | Direct clutch cylinder |
| 14 | 7D063 | Rear planetary sun gear No. 2 |
