Heating Ventilation Air Conditioning (HVAC) Module: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

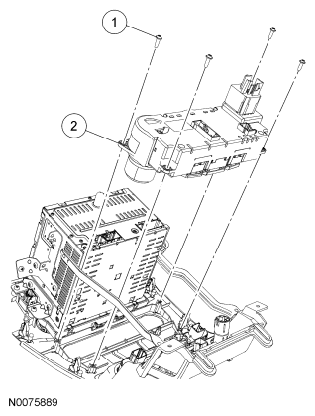

Fig 1: Identifying HVAC Module Components

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	W505943	HVAC module screw (4 required)
2	19980	HVAC module
