Rear Heated Seat Module Connector End View - C3304A

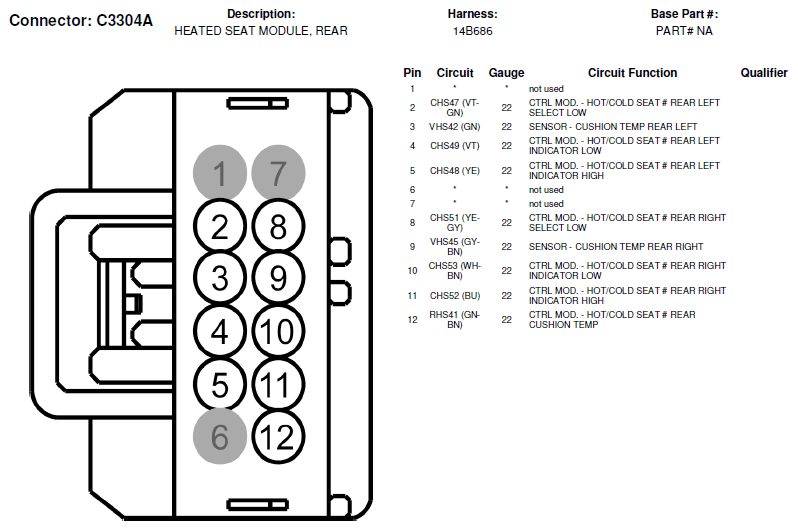

Fig 1: Rear Heated Seat Module Connector End View (C3304A)

G06374501

Courtesy of FORD MOTOR CO.
