Smart Junction Box Connector End View - C2280F

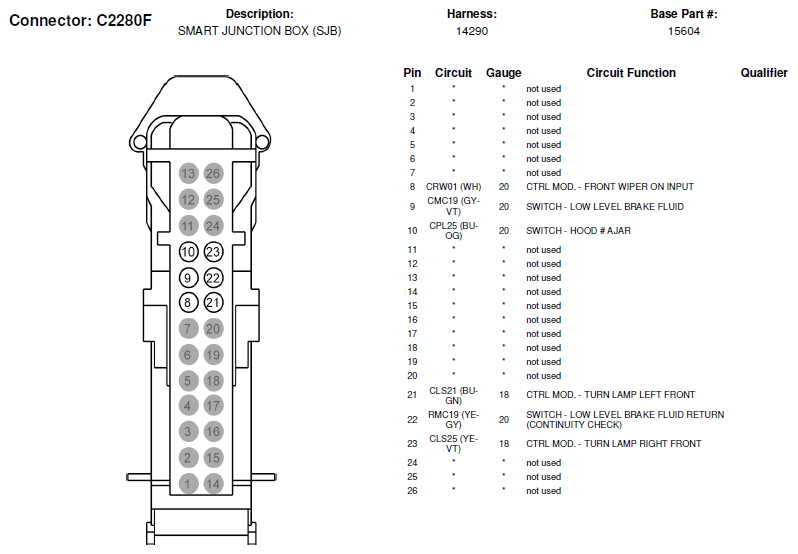

Fig 1: Smart Junction Box Connector End View (C2280F)

G06374419

Courtesy of FORD MOTOR CO.
