Fuel Tank Level Sensor Connector - C3270

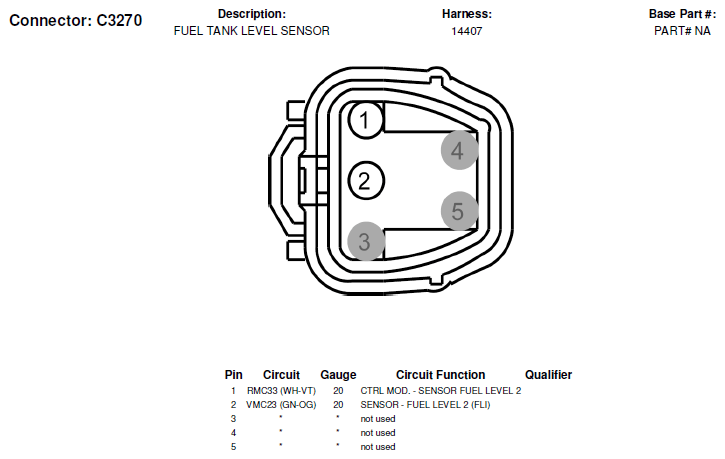

Fig 1: Fuel Tank Level Sensor Connector End View (C3270)

G06374500

Courtesy of FORD MOTOR CO.
